SG 1

SG 1

Blood Gas & Electrolyte Analyzer

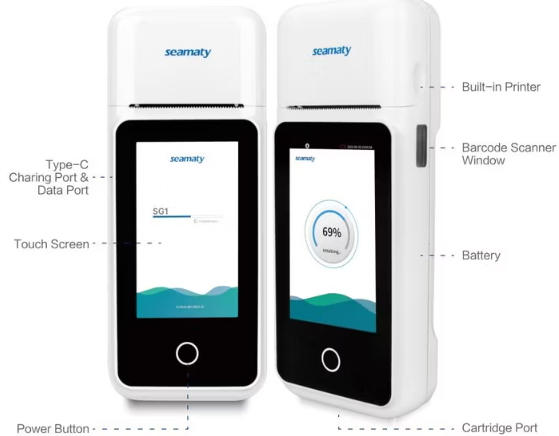

  • Type-C Charing Port & data Port.
  • Built-in Printer
  • Barcode Scanner Window
  • Touch Screen
  • Battery
  • Power Button
  • Cartridge Port
  • Easy to use: Testing can be performed in 3 simple steps at the patient's side with only 2 or 3 drops of whole blood.
  • Handheld portability: Lightweight with build-in battery allowing diagnose at the point of care, patient side, out in the field or exam room.
  • Touch Screen
banner
  • Fast results: Get accurate results in 4 minutes at the patient's side to enable rapid decision-making, and optimize patient-care.
  • Multi-parameter card: Single-use test card offer a broad menu of tests on a single, portable platform. Each test card has a unique combination of biosensors to suit a wide range of clinical needs.
Easy 3 steps operation
  • Step 1: Add sample Add 2 or 3 drops of whole blood into cartridge
  • Step 2: Insert cartridge Insert the cartridge into the analyzer
  • Step 3: Read result Read the test report in 4 minutes
Reader
  • Sample: Whole blood
  • Bar code: OR code
  • Display: 4.5 IPS touch screen
  • Power: SV 2A
  • Printer: Built-in thermal printer
  • Weight: 600g
  • Sample: volume 100 μL
  • QC & Calibrate: IQC (Intelligent Quality Control)
  • Connectors: Туре-с
  • Battery: 3.7V, 5000mAh
  • Operating temperature: Temperature: 5-32 °C; Relative humidity<85%;
