HumaStar 100/200

HumaStar 100/200

Unique Random-Access Analyzers for Small to Medium Size Laboratories

  • Unique design
  • Unique software architecture
  • Unique features
  • HumaStar 100: Constant throughput of 100 tests per hour
  • HumaStar 200: Up to 200 tests per hour throughput

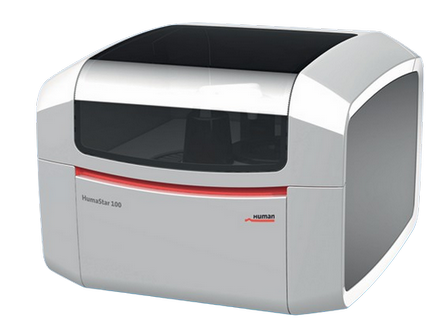

banner
One concept – two instruments
  • dentical software
  • Identical spare parts, consumables and accessories
  • Identical operation.
Unique extent of features included
  • Open random-access analyzer
  • Less than 1L/h water consumption (HS 100)
  • 80 reusable Bionex® cuvettes
  • 8-step wash station
  • Primary tubes and sample cups
  • Reagent cooling
  • 30 reagent and 60 sample positions
  • Internal sample barcode reader
  • Capacitive liquid level detector
  • Needle shock detector
  • Large liquid containers with level sensors
  • Windows 7®, USB compatible
  • LIS via ethernet, ASTM, bidirectional
  • Software designed for touch screen
Easy and efficien
  • HUMAN methods pre-installed and validated
  • Programming of settings for HUMAN reagents are not necessary
  • Automatic pre- and post-dilution
  • Extensive QC monitor
  • Minimal water and energy consumption
  • Minimal user maintenance
  • Removable sample tray
  • Choice of two different sample trays
  • Primary tubes up to 16 x 100 mm and sample cups
  • Removable reagent tray
  • 50 ml or 20 ml reagent bottles available
  • Continuous reagent cooling independent from main power switch
Safety first
  • Intelligent flagging system and extensive error log
  • Counter for components life cycle and maintenance
  • Two types of systemic and special washing solution
  • Routine check and blank for each individual cuvette
  • Validity limits for methods and reactions programmable
  • Reagent integrity check
  • UPS 230V included in standard delivery

User software – versatile and easy to use

  • Software designed for touch screen use
  • Intuitive user interface
  • Numerous features to ease daily routine
banner
Unique software design and architecture
  • Smart graphical user interface for convenient operation
  • Continuous loading of samples and reagents
  • Random-access and STAT
  • Free choice of execution order
  • Extended walk-away capability
  • Results archive with cumulative charts
  • Programmable automatic start up routine
  • Multiple work lists
  • Multi-language software (English, French, Spanish; other languages can be added)
QC options
  • Levey-Jennings plots and Westgard multi rules
  • Up to 3 QC levels per test
  • QC monitor and reports
  • Method statistics: including test counter, CV%, mean, graphical trend analysis
Calibration
  • Method and reagent monitor (volumes, available tests, calibration, QC status)
  • Automatic pre-dilution for calibrators
  • Up to 8 calibrators per method
Economical operation
  • Bi-directional LIS, ASTM, over ethernet port of the external PC
  • Positive identification of samples with internal barcode reader
  • Printing on any Windows compatible printer User Interface: Reagents Absorbance Chart
  • Method defined washing programms

Technical Data

Sr. No. Category Specifications
1 Mode Open, random-access, STAT
2 Throughput HumaStar 100: 100 t/h constant throughput
HumaStar 200: Up to 200 t/h throughput
3 Analysis Endpoint (bichromatic), Differential endpoint (with sample blank), Fixed time, Kinetic (bichromatic)
Multi-standard (up to 8), factor, linear, non linear (cubic-spline, poly-linear and logit-log four parameters)
4 Samples Removable sample tray
60 positions: primary tubes 12–12.5 x 100 mm and 10 mm cups
Optional: tray for 20 tubes 12–16 x 100 mm and 20 cups 3.5 ml
Sample volume: 2–300 µl
Internal barcode reader
Automatic pre- and post-dilution
Test profiles and replicates
5 Reagents Removable reagent tray
30 reagent/diluent positions
50 and 20 ml bottles, adapter for tubes and cups
Reagent volumes: 5–350 µl
Refrigeration to ~9 °C below ambient (at bottom of bottle)
6 Reaction Substrates, Enzymatic, Turbidimetric
Reaction volume: 210–350 µl
80 reusable Bionex cuvettes
6 mm optical path
Heat transfer by air
7 Pipetting Needle shock detector
Capacitive liquid level detector
8 Wash Station 8-step cuvette wash station
Systemic and special washing solution
HumaStar 100: 4 dispensing needles Water consumption < 1 l/h (8 ml/test)
HumaStar 200: 6 dispensing needles Water consumption < 2 l/h (8 ml/test)
9 Optical System 9 discrete wavelengths (340, 405, 505, 546, 578, 600, 650, 700 nm, one free)
Band pass: +/- 5 nm
Photometric linearity: 0–2.5 Abs
Stability: <1% drift per day
10 Data Management External computer required (Pentium IV, 2 GHz, 20 GB HDD, 512 MB RAM, CD/R, USB)
Windows 7® with .NET framework 4.0
English, French, Spanish OS recommended
Core i3™ or dedicated graphic card recommended
Minimum 900 dots resolution, touchscreen (1280x1024 pixel)
LIS: Bi-directional, polling mode, ASTM, ethernet
11 Languages English, French, Spanish software (other languages can be added)
12 Printouts By patient, single test, complete sample, worksheet, method and QCs, calibration curves, kinetics, continuous printing
13 Power 220–240 or 110–120 Vac, 50/60 Hz, <200 VA
Online UPS 230V included in Standard delivery
14 Dimensions 69 x 76 x 52 cm (WxDxH)
15 Weight 51 kg
16 Environment 16–30°C, humidity <80% non-condensing
