H560

H560

Upgrade to a five part differential and report faster with more confidence.

Three part differential systems are not designed to report results on abnormal patients without the need for further testing. These investigations are complex and delay the release of critical results to the requesting clinician. The H560’s five part differential count allows users to report world class results faster and with more confidence. Upgrade to a five part differential and report faster with more confidence.

banner
banner
Manual blood film review should focus on morphology, not counting.

Blood film review is a complex process and takes time to master. Adding a five part differential system to the laboratory means that valuable time at the microscope can be spent assessing morphology and other abnormalities rather than counting. With the H560 users can go beyond the normal 5 part differential with added information from the advanced research parameters - ALY%, LIC%, ALY#, LIC#, cWBC#, NRBC%, NRBC#.

H560 is ahead of the rest.

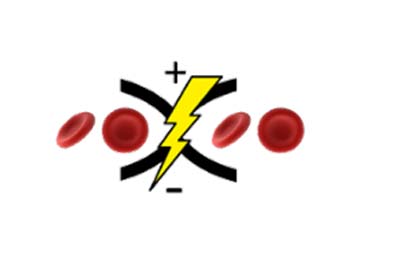

Anti-clog technology

The impedance aperture is treated with a high energy pulse after each sample – reducing the risk of blockages

Detailed platelet information

The H560’s PLCR and PLCC parameters allow users to report detailed information about the patient’s platelet status

Reduce pre-analytical variables with ADDM

To ensure consistent and exact dilution of the patient sample, an automated diluent dispense mode (ADDM) has been created to help reduce errors

Wide range of tubes

The H560 is able to accept sample tubes from many different manufacturers including pediatric samples

H560 uses less than a drop of blood

Just 15µL of Aspiration volume

The efficient fluidics design allows the H560 to aspirate only 15 µL. This combined with the open tube sampling aspiration means a couple of drops is more than enough

Multiple analytical modes

Six analytical processing modes mean flexibility of analysis and ensure you get the best result for your patient first time.

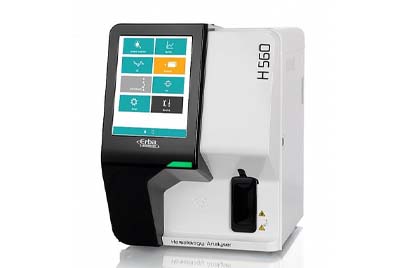

H560

Fully automated 3 part hematology analyser

Easy User Interface
  • 10.4” Touchscreen
  • 50,000 Reports
  • 4 Scatterplots (DIFF x3, BASO)
  • 3 Histograms (RBC, WBC, PLT)
  • 1-click analysis
Reagent registration
  • Full traceability via RFID inventory management system
Reliable engineered construction
  • Small footprint – 364 x 498 mm
  • Status indicator
  • Simple, well engineered construction
  • High quality components for long life
Anti-clog technology
  • Prevent build-up with anti-clog technology
banner
Efficient external connections
  • Printer, keyboard, barcode reader, LIS
Analytics
  • Low aspiration volume 15 µL
  • Guaranteed dilution accuracy via automatic diluent dispensing
  • Advanced platelet analysis (P-LCR, P-LCC, PDW-SD, PDW-CV)
  • Automatic floating discriminations
Design

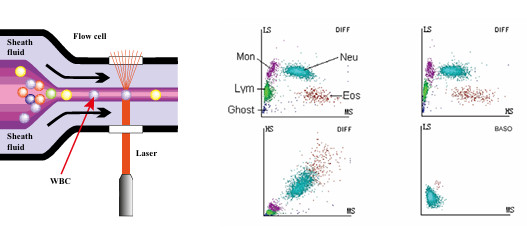

  • 3 Angle flow cytometry for high quality WBC differential results
