| 1. |
Body |
Aluminium die-cast body with all critical movements based on ball bearing and wire guides thereby ensuring smooth and precise manipulation |
|
|
| 2. |
Mechanical Stage |
Co-axial low drive mechanical stagewith wire movement (120mm x 132mm) (+/-5mm) with traverse area of 30mm x 76mm (+/-5mm) with single slide holder |
|
|
| 3. |
Focusing System |
Co-axial coarse and fine controls with a focus adjustment and fine adjustment knobs. Coarse focus range 20mm, Fine focus rotation 0.25mm |
|
|
| 4. |
Condenser Holder |
Rack and pinion mounted condenser holder |
|
|
| 5. |
Condenser |
Abbe condenser with aperture iris diaphragm (N.A. 1.25) focusable with rack & pinion and a continuously variable iris diaphragm |
|
|
| 6. |
Illumination Base With Option |
(a) Built-in illumination base with pre-centered 6V 20W halogen light source coupled with an efficient collector lens system. Universal power supply 100V-230V AC 50Hz single phase |

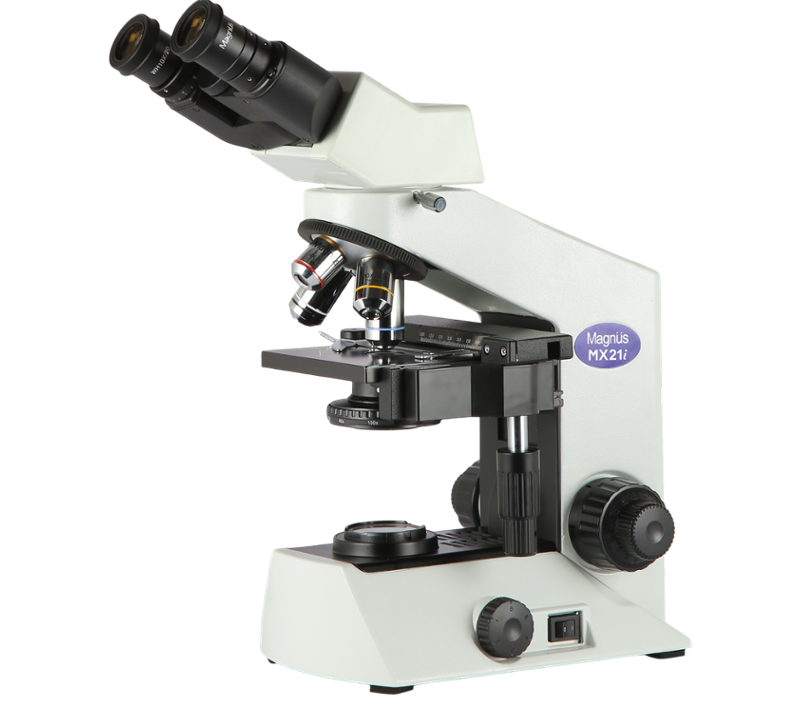

MX21i |
MX21i-TR |
(b) 3W LED light source high brightness, longlife (30,000hrs)
(c) 3W LED light source (with battery back-up) high brightness, longlife (30,000hrs), Battery back-up in-build NiMH rechargeable batteries, provides 8 to 8 hrs back-up on full charge |
MX21i-LED
MX21i-Freedom |
MX21i-TR-LED
MX21i-TR-Freedom |
| 7. |
Nose Piece |
Quadruple revolving nosepiece based on precision ball-bearing mechanism with positive click stop |
|
|
| 8. |
Objectives |
| **Plan Achromat Objectives** |
**N.A.** |
**W.D.** |
| 4x |
0.10 |
18.60mm |
| 10x |
0.25 |
10.60mm |
| 40x (spring loaded) |
0.65 |
0.62mm |
| 100x (oil, spring loaded) |
1.25 |
0.15mm |
|
|
|
| 9. |
Inclined Observation Head |
Binocular head (30 degree inclined siedentopf) 360 degree rotatable, diopter adjustment
Trinocular head (30 degree inclined siedentopf) 360 degree rotatable, diopter adjustment |
|
|
| 10. |
Eyepiece (wide field) for Observation |
WH 10x (FN 20mm) paired eyepiece. The unique optical design provides relief from eye fatigue and renders wide-field images of utmost clarity. Compatible with optionally available eyepiece micrometer |
|
|
