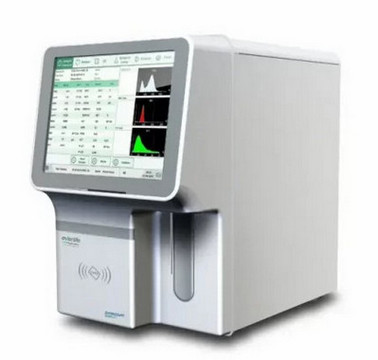

Dynacount 3D Fully Automatic Hematology Analyzer

Dynacount 3D CBC Analyzer is a 3 part hematology analyzer machine ,essential instrument for clinical and research laboratory that requires reliable and efficient blood cell counting and analysis. It also offering flag information for better diagnosis and providing automatic monitoring of reagent status.

banner
Features
  • 60 samples per hour.
  • Measures and derives 24 Parameters
  • 500000 Sample storage with 2 Histograms
  • 10.4-inch LCD touch screen
  • Smart counting mode for Low Platelet and WBCs
  • Smart prompt with one touch “Remove Error”
  • Real time Reagent monitoring and smart maintenance
  • Bidirectional LIS connectivity
Technical specifications
  • Throughput : 60 samples per hour
  • Principle : Electrical impedance method to measure WBC, RBC and PLT Cyanide-free reagent to measure HGB
  • Parameters : 24 parameters WBC (Gran%, Lym%, Mid%, Gran#, Lym#, Mid#) RBC (HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD) PLT (MPV, PDW-SD, PDW-CV, PCT, P-LCR, P-LCC) NLR, PLR
  • Graphics: 3 histograms for WBC, RBC, and PLT
  • Sample Volume: Whole blood-9 µL Capillary mode-9 µL Prediluted mode-20 µL
  • Display : 10.4-inch touch screen LCD display
  • Printer : Inbuilt thermal printer, supports external printers
  • Power supply : AC 100-240V, 50/60 Hz, 160 VA
  • Dimension : (L)430mm x (W)280mm x (H)400mm

Comparison between 3-part and 5-part Hematology Analyzers

Sr No. Model Dynacount 3D-Hematology Analyzer Dynacount 5D-Hematology Analyzer
1 Type 3 Part Analyzer 5 Part Analyzer
2 Principle Electrical Impedance + Colorimetry Laser scatter, Flow cytometry + Electrical Impedance + Colorimetry
3 Parameters 22 parameters 25 parameters
4 Research Parameters 2 Research Parameters 6 Research Parameters
5 Graph 3 Histogram 4 Scatter grams
6 Memory 5,00,000 Result Memory 50,000 Results With Scattergram & Histogram
7 Sample volume 9 µL 20 µL
