Provides Critical Testing Anytime, Anywhere i15

EDAN

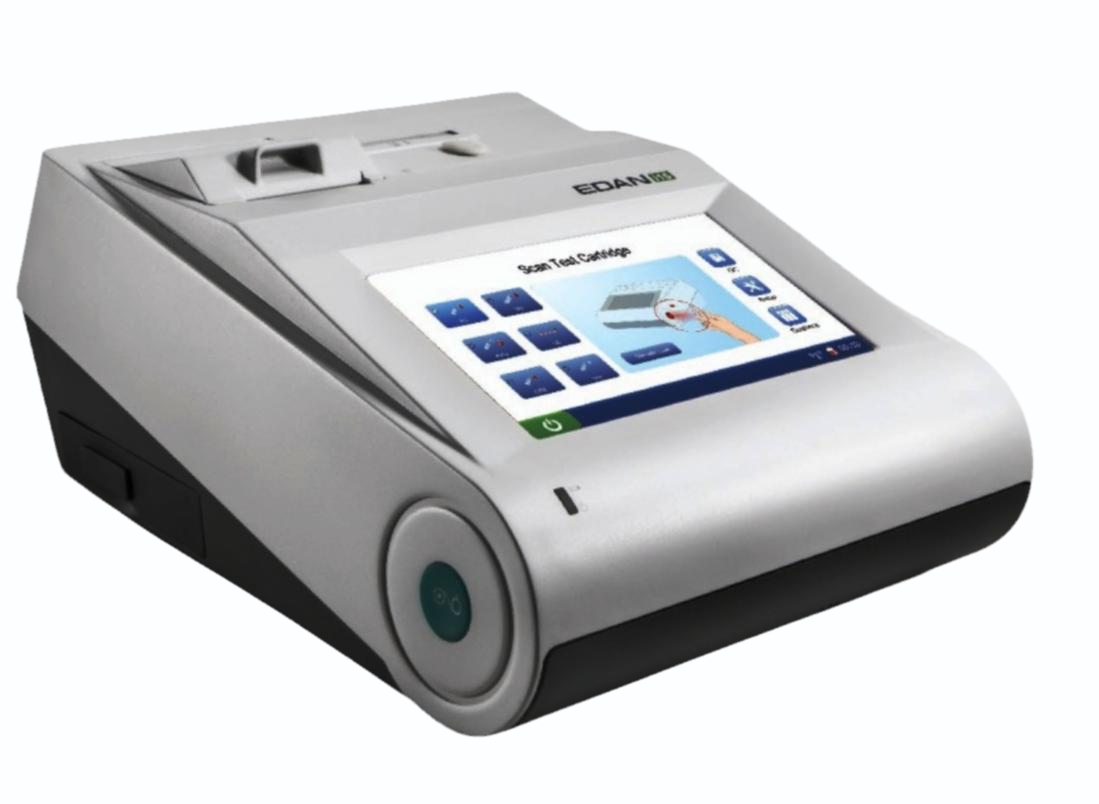

i15 Blood Gas and Chemistry Analyzer

Specification
  • Throughput: Results in 1 minute after sample aspiration
  • Sample volume: 140μl / 80μl
  • Quality control: 3 or 5 levels QC, External electronic simulator
  • Display: 7-inch color LCD Display, 800*480
  • Interface: 4 x USB 2.0 host, 1 x RS232, WLAN
  • Input device: Touch screen and barcode scanner
banner
  • Power supply: 100~240VAC, 50/60Hz
  • Battery: 5000mAh rechargeable lithium-ion battery, 50 samples continuous testing
  • _Dimensions (W_H_D)_: 315_238_153 mm
  • Weight: 3.65 KG (include battery)
  • Operation Environment: 10°C-31°C; %RH: 25%-80%; 57-106.6 KPa
Portable, lightweight
  • Capable to run 50 samples with fully-charged battery
  • Diagnose at the point of care, patient side, out in the field or exam room
Easy, Quick and Convenient
  • Zero maintenance
  • Minimize hands on time and training requirement
  • Auto-sampling
  • Report is ready within one minute after sample aspiration
Accurate and Reliable
  • Innovative microchip liquid control technology and micro-sensor multifunction membrane technology
  • High sensitivity and accuracy
  • Calibrator, Control and Electronic simulator to TRIPLE guarantee the RESULTS!
Flexible Data Management
  • Acquire patients' information via barcode/QR code
  • Up to 10,000 patient data storage
  • 4 USB ports and LAN/WiFi for data management
  • Optional data management software
Built-in Thermal Printer
  • Real-time auto-printing
  • Support for external printers
Multi-parameter cartridge
  • Multi popular time-sensitive parameters come in one cartridge, including ABG, electrolytes and metabolites
  • Single-use cartridge avoids contamination
  • Room temperature storage with long shelf-life
